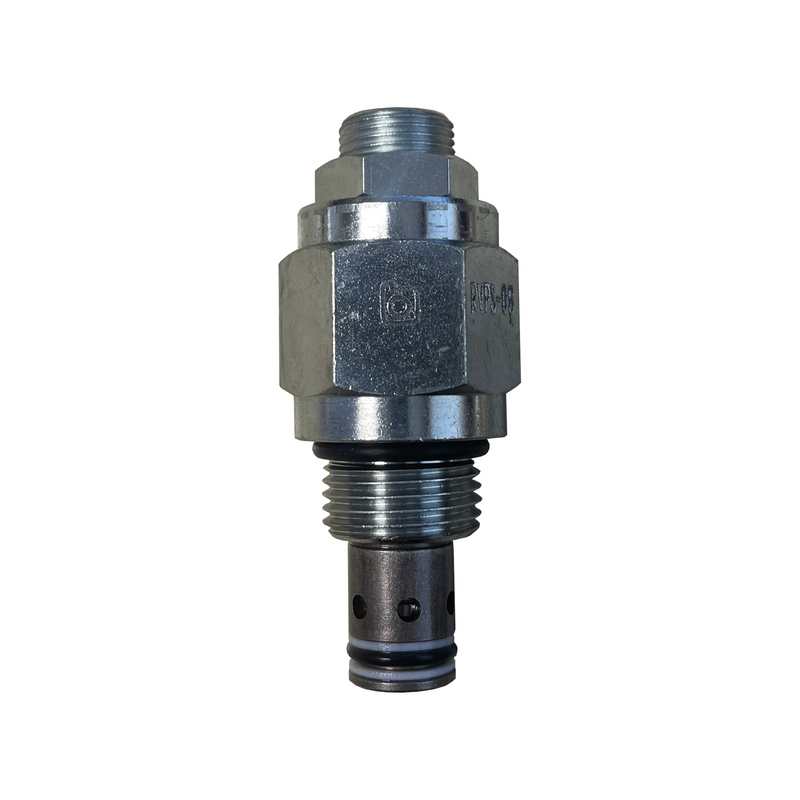

A hydraulic pressure relief cartridge valve with metal body and threaded connections.
Pressure Relief Cartridge Valve, Pilot Operated, Spool Type (RVPS-08-N-S-50)
A hydraulic pressure relief cartridge valve with metal body and threaded connections.

Pressure Relief Cartridge Valve, Pilot Operated, Spool Type (RVPS-08-N-S-50)

SKU CCRVPS08N-S-0-50
$76.71 - $76.71
$76.71
$76.71 - $76.71
$76.71
Availability:
in stock, ready to be shipped
by Bucher Hydraulics
Request a quote

Pressure Relief Cartridge Valve, Pilot Operated, Spool Type



FEATURES

  • Valve Size: 08 Series
  • Operating Pressure: 5000 PSI
  • Regulated Pressure Range: 50-5000 PSI
  • Proof Pressure: 10,000 PSI
  • Flow: 15 GPM
  • Valve Cavity: C0820
  • Alternate SKU: 5205100781


TECHNICAL DOCUMENTS

Product Data Sheet
