MSW-02-Y D03 Modular Throttle Valve-Metered In (Check)

SKU KOMSW02Y
Original price $162.12 - Original price $162.12
Original price
$162.12
$162.12 - $162.12
Current price $162.12
Availability:
in stock, ready to be shipped
Request a quote

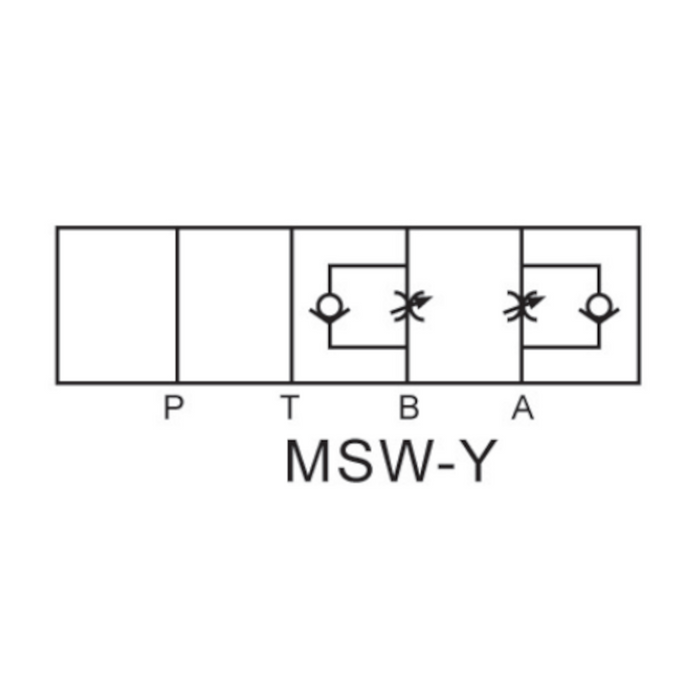

Kompass DO3 modular throttle (Check) valve used to control flow rate in hydraulic circuits. This valve has two control circuits consisting of an A port and B port, giving the ability to adjust the specific circuit flow individually within one valve body. Flow is metered IN to working component.

Features

  • Valve Size: D03
  • Valve Type: Modular Relief Valve
  • Metered Flow Direction: In
  • Flow Regulated Port: A Port & B Port
  • Max Pressure: 3555 PSI
  • Max Flow: 10.56 GPM
  • Mounting Type: Stackable
  • Adjustment Control: Knob Type with Locknut



TECHNICAL DOCUMENTS

Product Data Sheet

Dimensions Sheet
