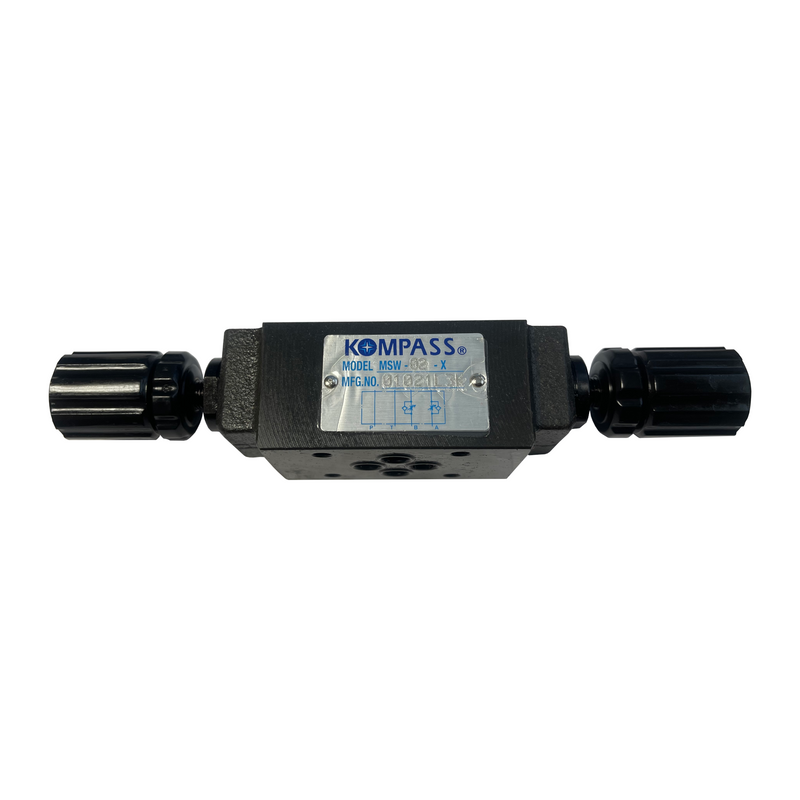

Kompass Hydraulic Throttle Valve with Check

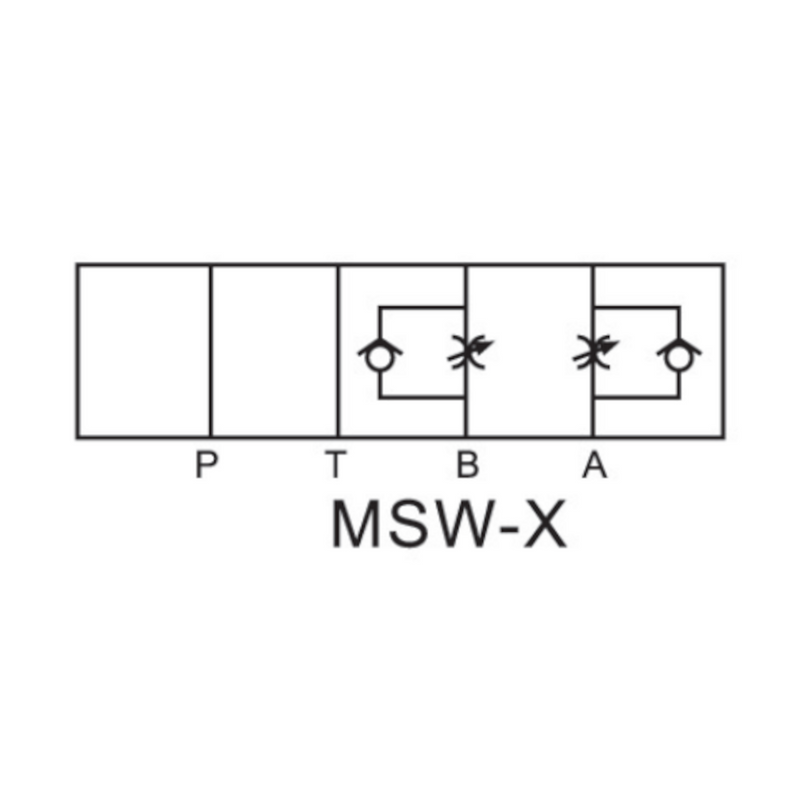

Kompass Hydraulic Throttle Valve with Check (Symbol)
Kompass Hydraulic Throttle Valve with Check
Kompass Hydraulic Throttle Valve with Check (Symbol)

MSW-02-X D03 Modular Throttle Valve-Metered Out (Check)

SKU KOMSW02X
$209.60 - $209.60
$209.60
$209.60 - $209.60
$209.60
Availability:
in stock, ready to be shipped
by Kompass Hydraulics
Request a quote

MSW-02-X

Kompass DO3 modular throttle (Check) valve used to control flow rate in hydraulic circuits. This valve has two control circuits consisting of an A port and B port, giving the ability to adjust the specific circuit flow individually within one valve body. Flow is metered out of working component.

Features

  • Valve Size: D03
  • Valve Type: Modular Relief Valve
  • Metered Flow Direction: Out
  • Flow Regulated Port: A Port & B Port
  • Max Pressure: 3555 PSI
  • Max Flow: 10.56 GPM
  • Mounting Type: Stackable
  • Adjustment Control: Knob Type with Locknut



TECHNICAL DOCUMENTS

Product Data Sheet

Dimensions Sheet
