MSA-02-X D03 Modular Throttle Valve-Metered Out (Check)
SKU KOMSA02X
Original price
$113.07
-
Original price
$113.07
Original price
$113.07
$113.07
-
$113.07
Current price
$113.07
Availability:
in stock, ready to be shipped

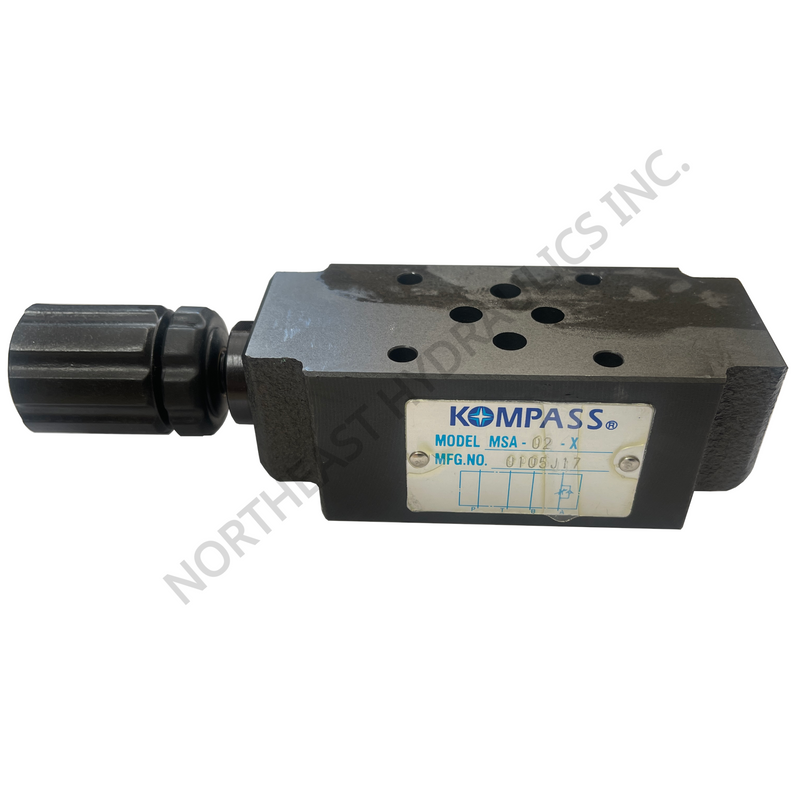

Kompass MSA-02-X

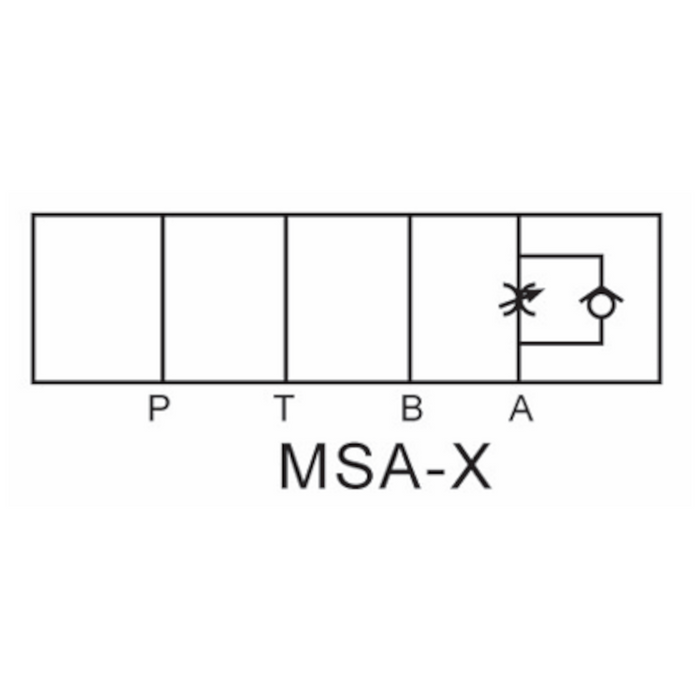

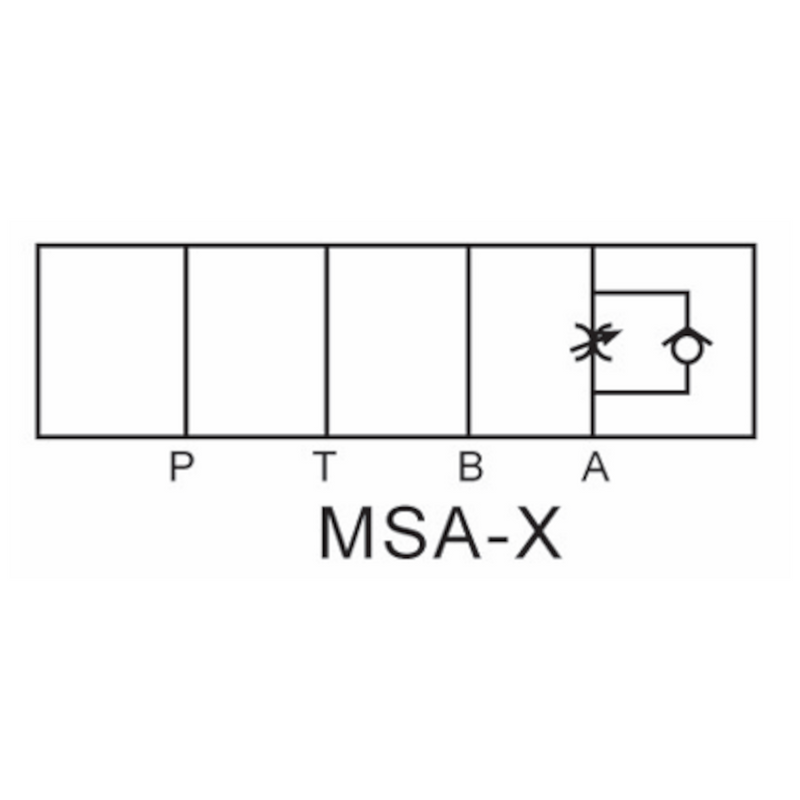

Kompass DO3 modular throttle (Check) valve used to control flow rate in hydraulic circuits. This valve has a control circuit at A port, giving the ability to adjust the specific circuit flow within the valve body. Flow is metered out of working component.
Features
- Valve Size: D03
- Valve Type: Modular Relief Valve
- Metered Flow Direction: Out
- Flow Regulated Port: A Port
- Max Pressure: 3555 PSI
- Max Flow: 10.56 GPM
- Mounting Type: Stackable
- Adjustment Control: Knob Type with Locknut
