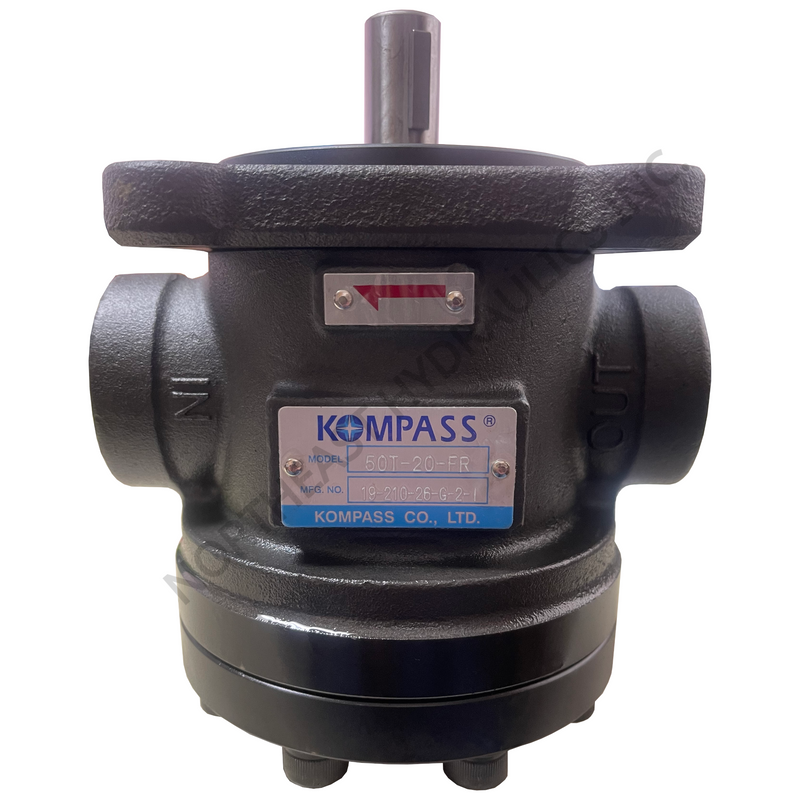

A black cast iron industrial pump with a prominent silver and blue Kompass brand plate on the front, featuring a central shaft protruding from the top and side connection ports.

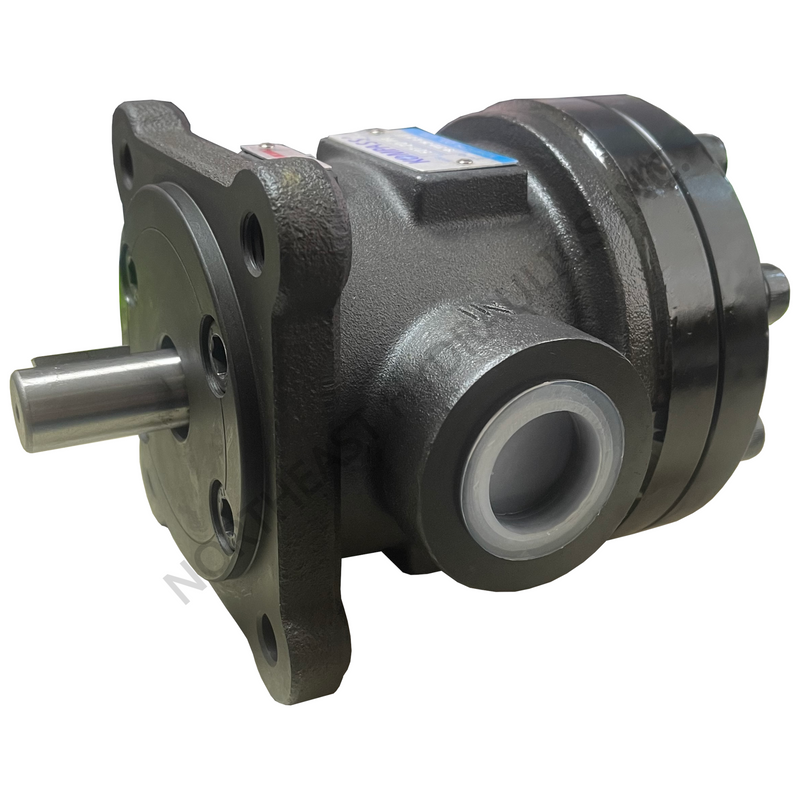

A heavy-duty cast iron hydraulic pump with a black painted finish, featuring a silver metal output shaft and a white rubber seal, shown on a white background.

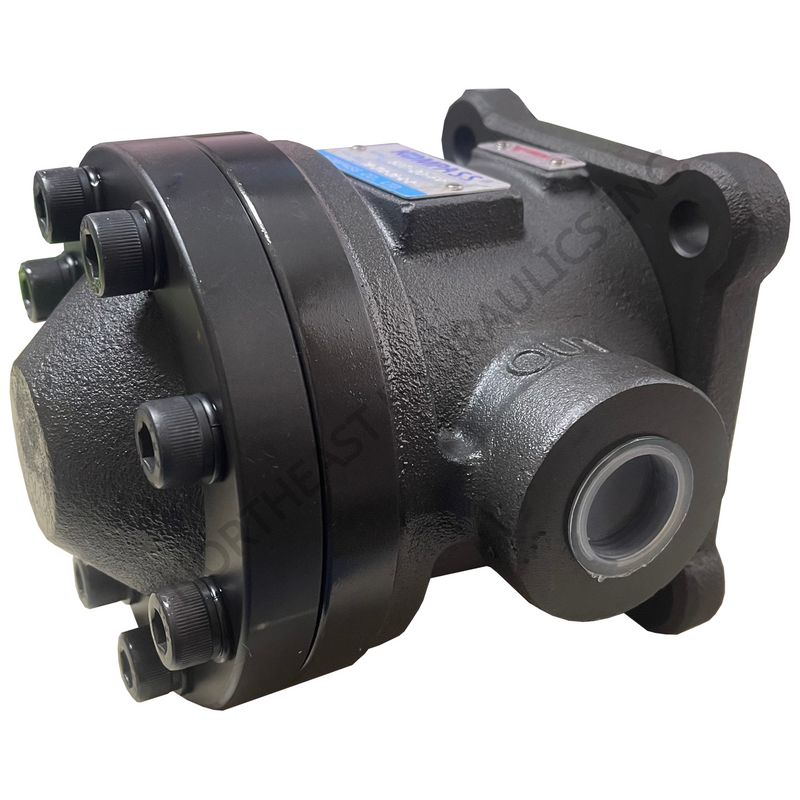

A heavy-duty cast iron hydraulic pump with a black painted finish, featuring multiple threaded connection ports and a blue identification sticker on its side, set against a plain white background.
A black cast iron industrial pump with a prominent silver and blue Kompass brand plate on the front, featuring a central shaft protruding from the top and side connection ports.
A heavy-duty cast iron hydraulic pump with a black painted finish, featuring a silver metal output shaft and a white rubber seal, shown on a white background.
A heavy-duty cast iron hydraulic pump with a black painted finish, featuring multiple threaded connection ports and a blue identification sticker on its side, set against a plain white background.

Kompass Fixed Displacement Vane Pump(50T-20-FR)

SKU
$871.95 - $871.95
$871.95
$871.95 - $871.95
$871.95
Availability:
Low stock
by Kompass Hydraulics
Request a quote

50T series is a fixed displacement vane pump. Low noise and minimal vibration derived from high efficiency design. Commonly used in grinding, press, die casting and injection machinery.

Features

  • Displacement: 1.20 in.³ / rev.
  • Pump Type: Fixed Displacement Vane
  • Rated Operating Pressure: 995 PSI
  • Max Operating Pressure: 1280 PSI
  • Speed:
    Minimum - 600 RPM
    Max-    1800 RPM
  • Flow: 9.35 GPM @ 1800 RPM Unloaded
  • Rotation: Clockwise
  • Shaft: 3/4" dia. w/ 3/16" key
  • Ports:
     In -    1" BSPT
     Out - 3/4" BSPT
  • Mounting Flange: SAE "A" 2-Bolt



TECHNICAL DOCUMENTS

Product Data Sheet
