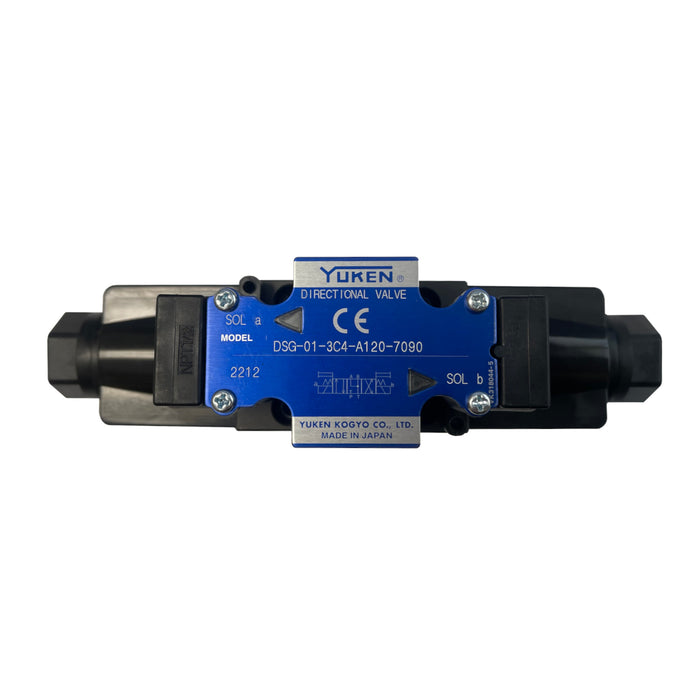

DSG-01-3C4-A120-7090 D03 Solenoid Directional Control Valve (120 VAC)

SKU ALDSG013C4A1207090
Original price $190.00 - Original price $190.00
Original price
$190.00
$190.00 - $190.00
Current price $190.00
Availability:
Low stock
by Yuken
Request a quote

Yuken DO3 3 position solenoid operated directional control valve for directing fluid flow in hydraulic circuit. Featuring terminal box type electrical connection with indicator lights. Long life and quiet operation. P port blocked, A and B port to T port in neutral position.



Features

  • Valve Size: D03
  • Valve Type: Solenoid Control Valve
  • Max Pressure: 5080 PSI
  • Max Flow: 23.8 GPM
  • Spool Type: 4 Way/3 Position

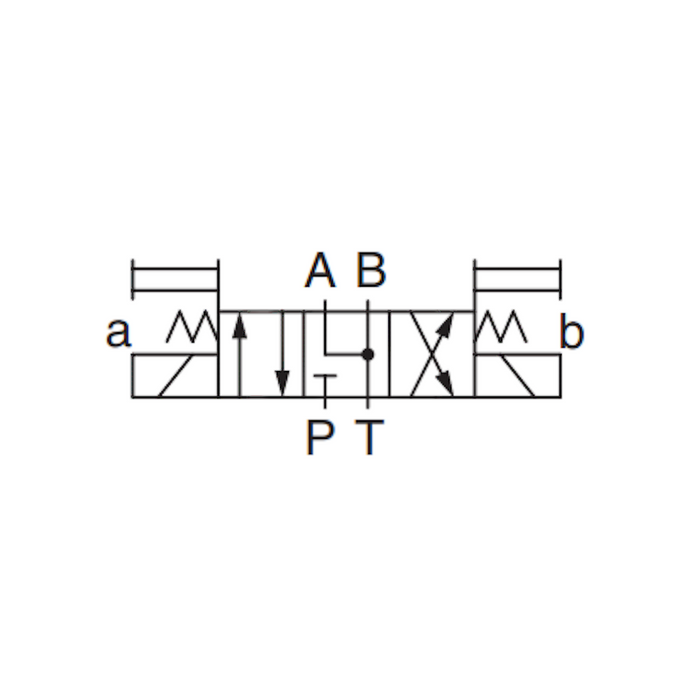

  • Neutral Position: P Closed/A,B to T
  • Spool Action: Spring Centered
  • Mounting Type: Manifold
  • Electric Connection Type: Terminal Box
  • Coil Voltage: 120 VAC



TECHNICAL DOCUMENTS

Product Data Sheet
