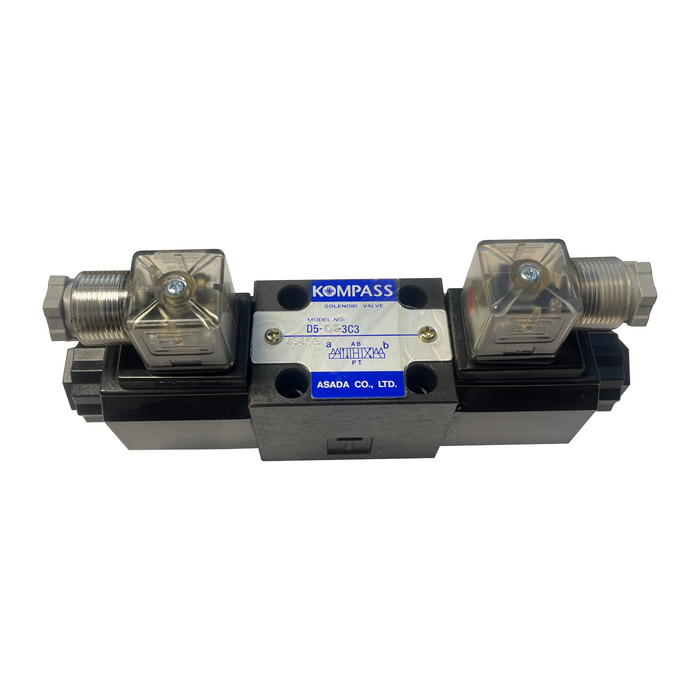

D5-02-3C3-A1 D03 Solenoid Directional Control Valve (110 VAC)

SKU D5023C3A16
Original price $156.20 - Original price $156.20
Original price
$156.20
$156.20 - $156.20
Current price $156.20
Availability:
in stock, ready to be shipped
Request a quote

DO3 3 position solenoid operated directional control valve for directing fluid flow in hydraulic circuit. Featuring terminal box type electrical connection with indicator lights. Long life and quiet operation. P, A, B ports connected to T port in neutral position.

Features

  • Valve Size: D03
  • Valve Type: Solenoid Control Valve
  • Max Pressure: 4568 PSI
  • Max Flow: 10.56 GPM
  • Rated Flow: 7.93 GPM
  • Spool Type: 4 Way/3 Position
  • Neutral Position: All Ports Open
  • Spool Action: Spring Centered
  • Mounting Type: Manifold
  • Electric Connection Type: Din Connector
  • Coil Voltage: 110 VAC



TECHNICAL DOCUMENTS

Product Data Sheet

How To Order

Spool Chart
