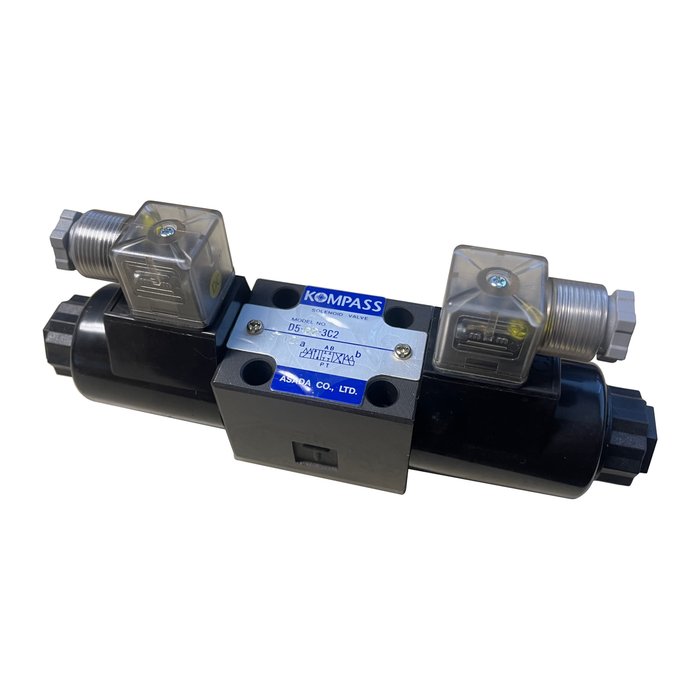

D5-02-3C2-D1 D03 Solenoid Directional Control Valve (12 VDC)
SKU D5-02-3C2-D1
Original price
$214.75
-
Original price
$214.75
Original price
$214.75
$214.75
-
$214.75
Current price
$214.75
Availability:
in stock, ready to be shipped
DO3 3 position solenoid operated directional control valve for directing fluid flow in hydraulic circuit. Featuring DIN plug type electrical connection with indicator lights. Long life and quiet operation. All ports blocked in neutral position.
Features
- Valve Size: D03
- Valve Type: Solenoid Control Valve
- Max Pressure: 4568 PSI
-
Max Flow: 15.85 GPM
- Rated Flow: 10.56 GPM
- Spool Type: 4 Way/3 Position
- Neutral Position: All Ports Closed
- Spool Action: Spring Centered
- Mounting Type: Manifold
- Electric Connection Type: DIN Plug Connector
- Coil Voltage: 12 VDC
