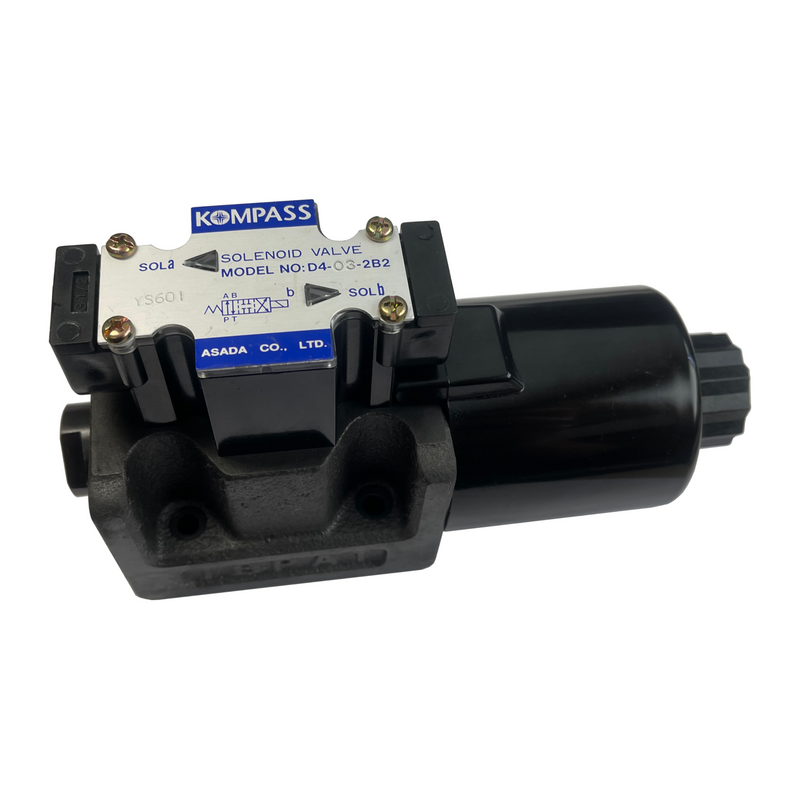

D4-03-2B2-D2 D05 Solenoid Directional Control Valve (24 VDC)

SKU D4032B2D2
Sold out
Original price $186.33 - Original price $186.33
Original price
$186.33 - $186.33
Current price $186.33
Out of stock
Request a quote

DO5 2 position solenoid operated directional control valve for directing fluid flow in hydraulic circuit. Featuring terminal box type electrical connection with indicator lights. Long life and quiet operation. P to A, B to T neutral position. All ports closed during spool shift.



  • Valve Size: D05
  • Valve Type: Solenoid Control Valve
  • Max Pressure: 4568 PSI
  • Max Flow: 26.41 GPM
  • Rated Flow: 15.85 GPM

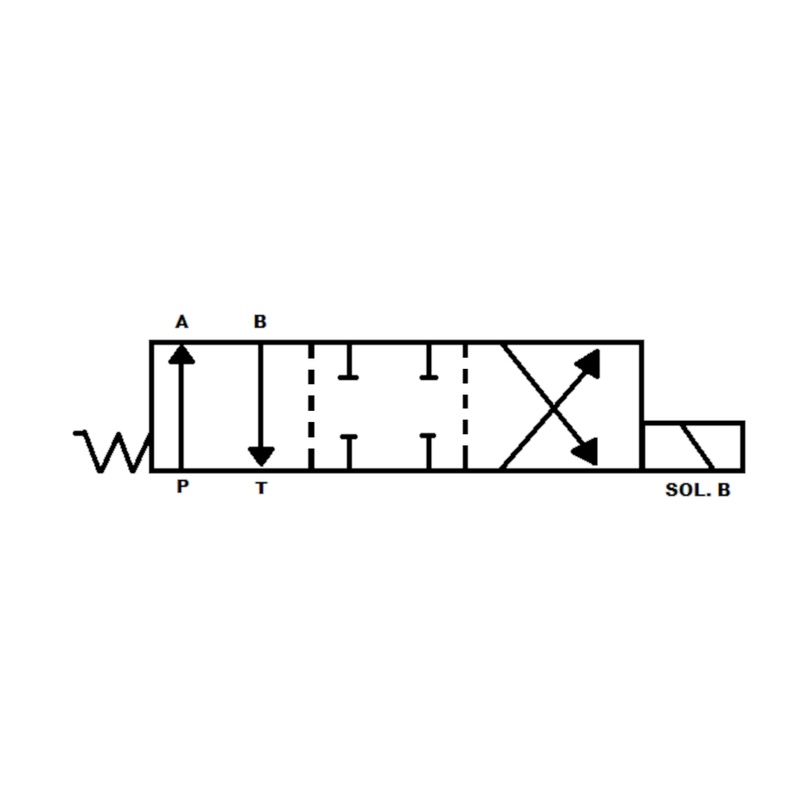

  • Spool Type: 4 Way/2 Position
  • Neutral Position: P to A, B to T
  • Spool Action: Spring Centered
  • Mounting Type: Manifold
  • Electric Connection Type: Terminal Box
  • Coil Voltage: 24 VDC
