D4-02-3C2-D1 D03 Solenoid Directional Control Valve (12 VDC)

SKU D4-02-3C2-D1
Original price $186.80 - Original price $186.80
Original price
$186.80 - $186.80
Current price $186.80
in stock, ready to be shipped
Request a quote

DO3 3 position solenoid operated directional control valve for directing fluid flow in hydraulic circuit. Featuring terminal box type electrical connection with indicator lights. Long life and quiet operation. All ports blocked in neutral position.



  • Valve Size: D03
  • Valve Type: Solenoid Control Valve
  • Max Pressure: 4568 PSI
  • Max Flow: 15.85 GPM
  • Rated Flow: 10.56 GPM

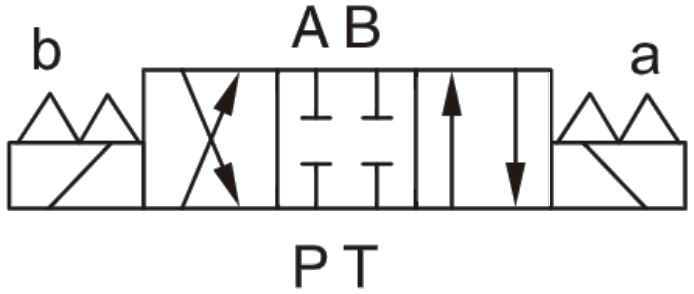

  • Spool Type: 4 Way/3 Position
  • Neutral Position: All Ports Closed
  • Spool Action: Spring Centered
  • Mounting Type: Manifold
  • Electric Connection Type: Terminal Box
  • Coil Voltage: 12 VDC



Product Data Sheet

How To Order

Spool Chart
