D4-02-2B3-A1 D03 Solenoid Directional Control Valve (110 VAC)

SKU D4-02-2B3-A1
Original price $149.94 - Original price $149.94
Original price
$149.94
$149.94 - $149.94
Current price $149.94
Availability:
in stock, ready to be shipped
Request a quote

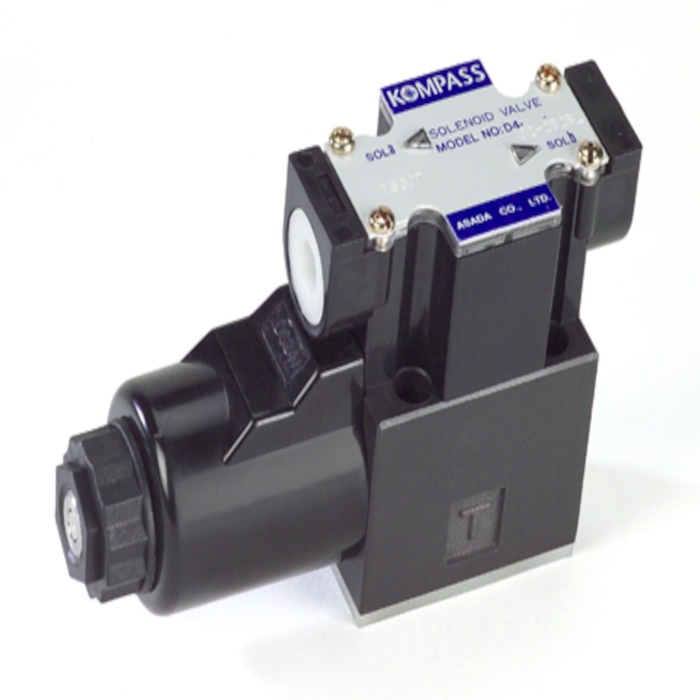

DO3 2 position solenoid operated directional control valve for directing fluid flow in hydraulic circuit. Featuring terminal box type electrical connection with indicator lights. Long life and quiet operation. P to A, B to T neutral position. All ports connected during spool shift.



Features

  • Valve Size: D03
  • Valve Type: Solenoid Control Valve
  • Max Pressure: 4568 PSI
  • Max Flow: 15.85 GPM
  • Rated Flow: 10.56 GPM
  • Spool Type: 4 Way/2 Position

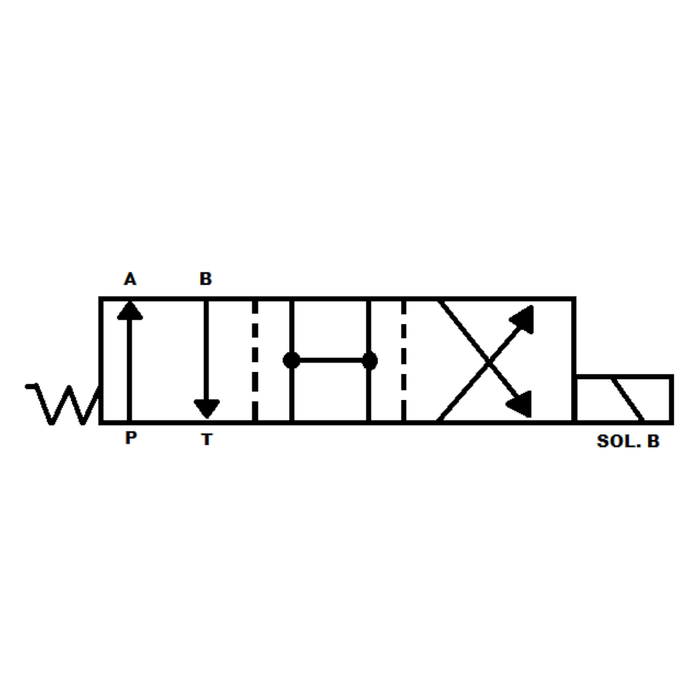

  • Neutral Position: P to A, B to T
  • Spool Action: Spring Centered
  • Mounting Type: Manifold
  • Electric Connection Type: Terminal Box
  • Coil Voltage: 110 VAC



TECHNICAL DOCUMENTS

Product Data Sheet

How To Order

Spool Chart
