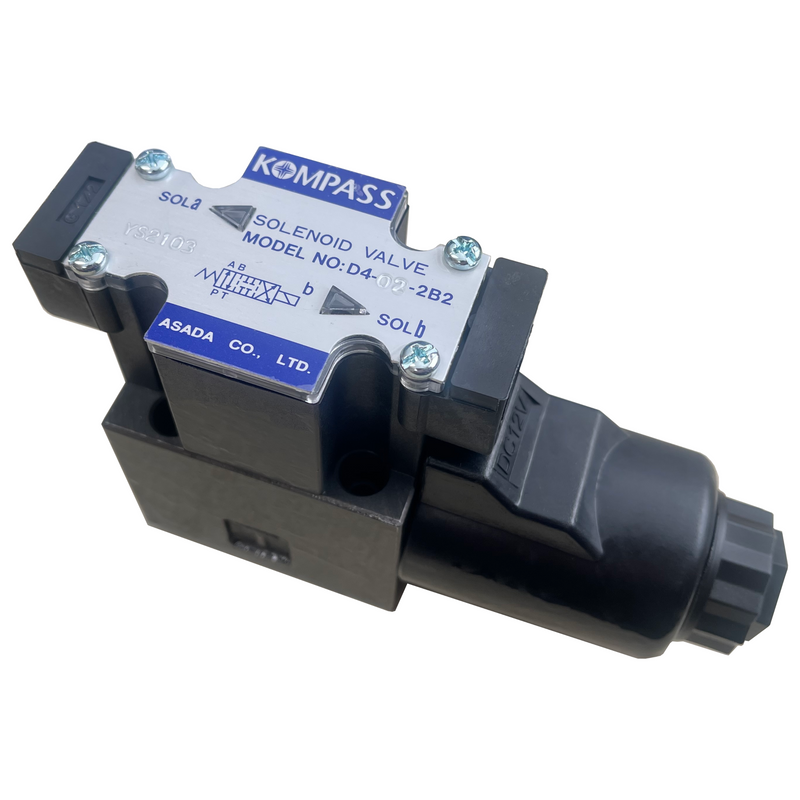

D4-02-2B2-D1 D03 Solenoid Directional Control Valve (12 VDC)
SKU D4-02-2B2-D1
Original price
$146.87
-
Original price
$146.87
Original price
$146.87
$146.87
-
$146.87
Current price
$146.87
Availability:
in stock, ready to be shipped
DO3 2 position solenoid operated directional control valve for directing fluid flow in hydraulic circuit. Featuring terminal box type electrical connection with indicator lights. Long life and quiet operation. P to A, B to T neutral position. All ports closed during spool shift.
Features
- Valve Size: D03
- Valve Type: Solenoid Control Valve
- Max Pressure: 4568 PSI
-
Max Flow: 15.85 GPM
- Rated Flow: 10.56 GPM
- Spool Type: 4 Way/2 Position

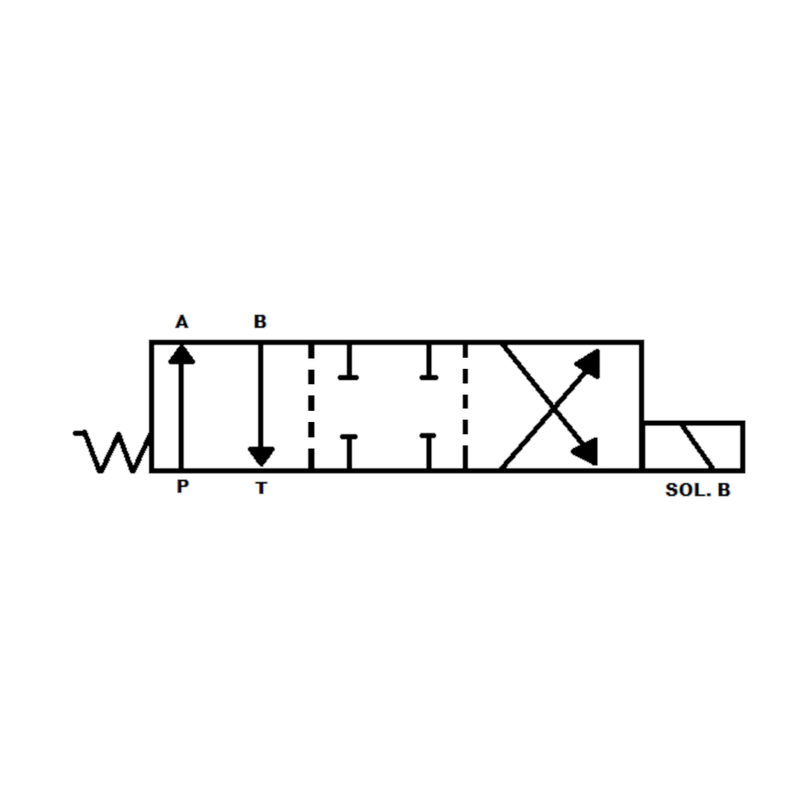

- Neutral Position: P to A, B to T
- Spool Action: Spring Centered
- Mounting Type: Manifold
- Electric Connection Type: Terminal Box
- Coil Voltage: 12 VDC
