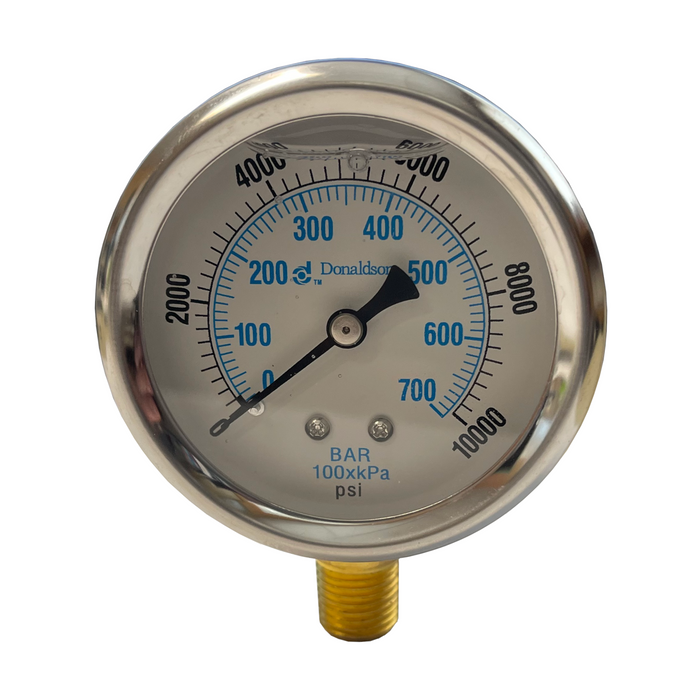

2 1/2" 10,000 PSI Lower Mount In-Line Pressure Gauge (P562701)

SKU DFP562701
Original price $26.69 - Original price $26.69
Original price
$26.69 - $26.69
Current price $26.69
in stock, ready to be shipped
Request a quote

Donaldson liquid-filled pressure gauges are mechanical bourdon tube type pressure gauges. The gauge is glycerin filled with a stainless-steel case and bezel that will not rust or discolor. The bourdon tube and movement are constructed of brass and bronze alloys.

When selecting a gauge, gauge selection should be double the gauge pressure range in correspondence to the systems operating pressure. Example: If the system is running at 1000 PSI a gauge with a reading of 2000 PSI is ideal for most accurate reading.


  • Pressure Range - 0 - 10000 PSI / 0 - 700 BAR
  • 2 1/2" Gauge Dial
  • 304 Stainless Steel Case
  • Glycerin Filled
  • Lower Mount
  • 1/4" NPT Thread
  • Accuracy - (+/- 3%)
