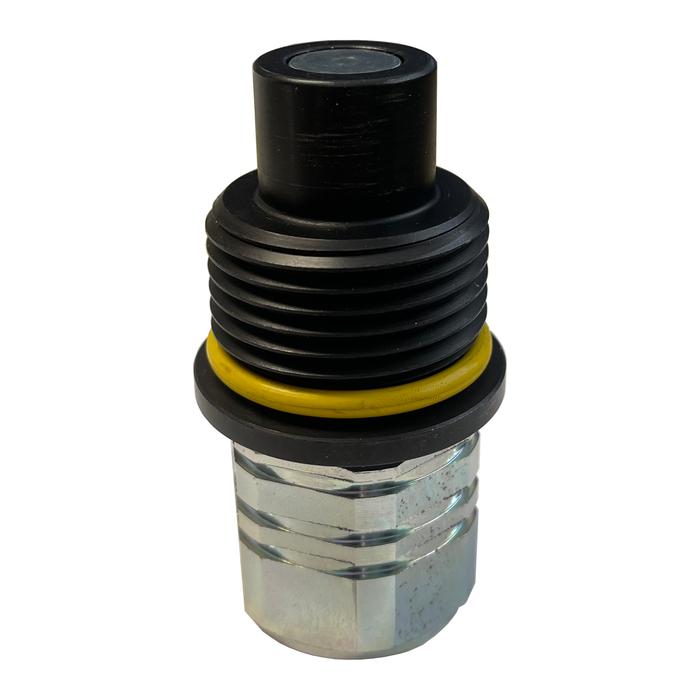

1 1/4" Male Body x 1 1/4" Female O-Ring Boss (PVEP-114M-SAE-1-5/8")

The PVEP series screw together couplings are ideal for excavator, grapple, hammer, construction equipment and oil field applications.

SPECIFICATIONS

• Body Size: 1 1/4"
• Thread Size: 1 5/8"-12 Female O-Ring Boss
• Rated Pressure: 5000 PSI
• Temperature Rating: -22°F to 230°F

FEATURES

• Connect/Disconnect under pressure up to 4350 PSI

• Flush face design to avoid fluid loss and air inclusion

• Two stage valve for protection of sealing components during connection/disconnection of couplers

Interchangeability

• Stucchi VEP
• DNP PST4
• Parker FET

Product Data Sheet
