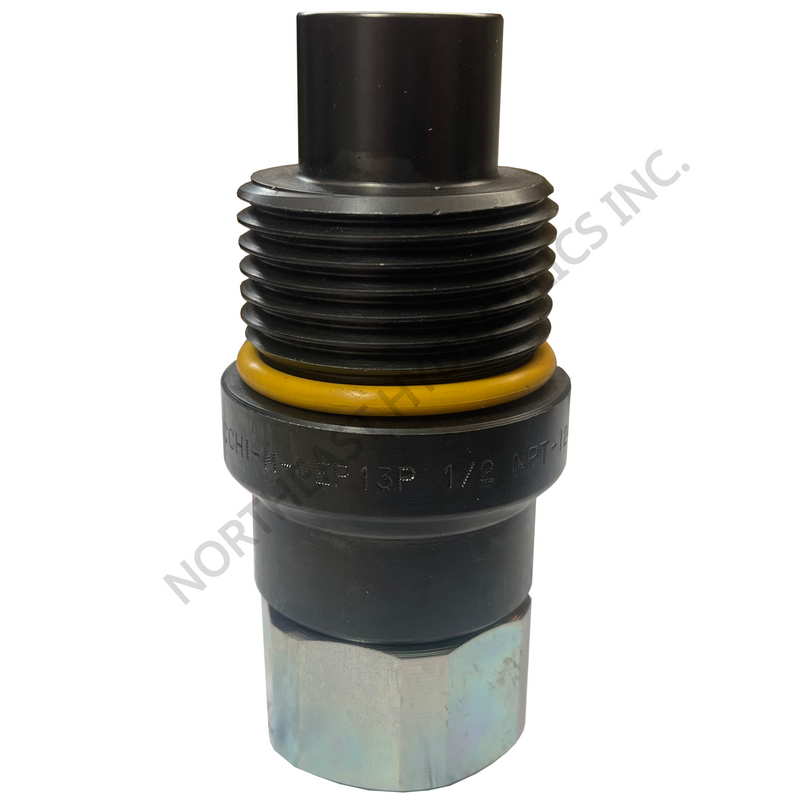

M. VEP13 1/2 NPT

The VEP Series is a popular solution for hydraulic circuit applications subject to
high-pressure impulses and circuits which experience high residual or trapped pressure
in a line. Thread-to-connect design eliminates premature wear or brinelling, a patented
internal valve allows connection/disconnection with high residual pressures, and the flat
face design avoids loss of hydraulic fluid and contamination in the circuit. A yellow O-ring
indicator makes the VEP series even easier to work with.

SPECIFICATIONS

• Body Size: 1/2"
• Thread Size: 1/2" Female NPT
• Rated Coupled Pressure: 7975 PSI

• Burst Pressure: 14500 PSI

FEATURES

• Connect/Disconnect under pressure up to 3625 PSI

• Flush face design to avoid fluid loss and air inclusion


Product Data Sheet
