MBW-03H Modular Relief Valve
SKU KOMBW03H
Original price
$386.80
-
Original price
$386.80
Original price
$386.80
$386.80
-
$386.80
Current price
$386.80
Availability:
in stock, ready to be shipped

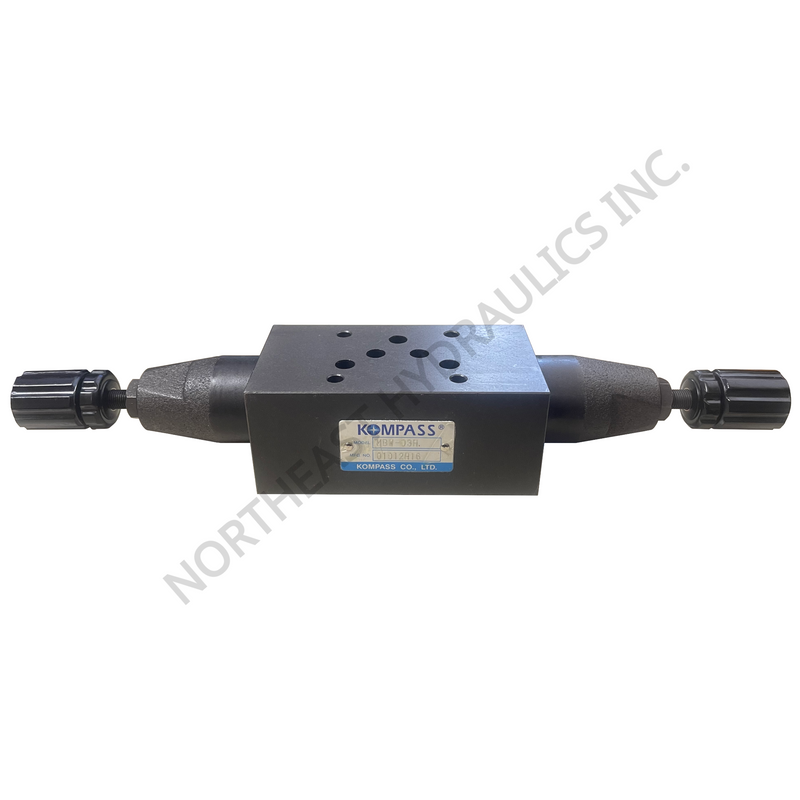

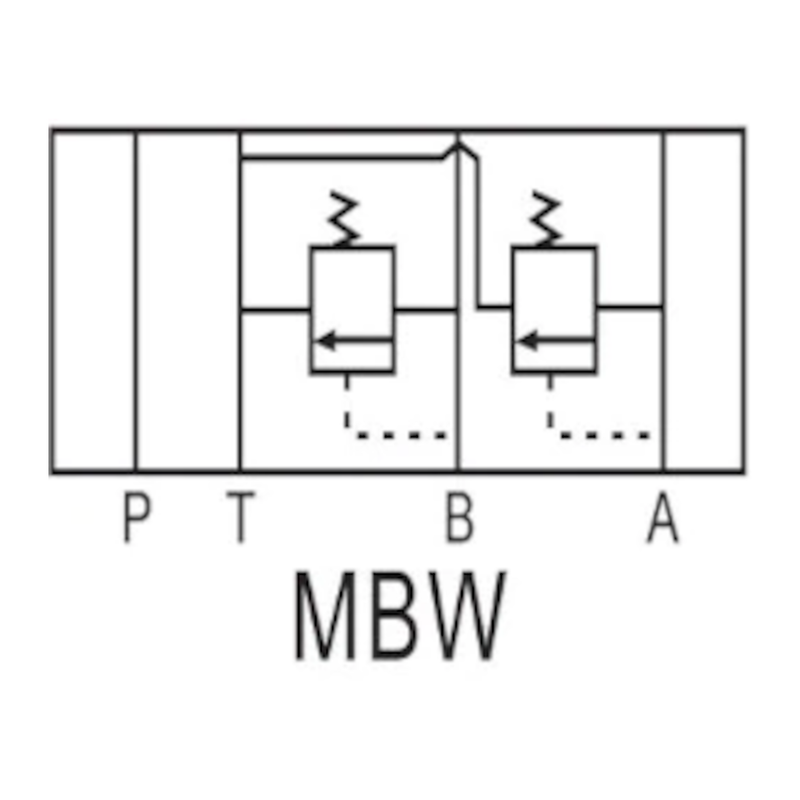

Kompass DO5 modular relief valve used to control pressure in hydraulic circuits. Pressure can be set between 1015-3190 PSI. This valve has two control circuits consisting of an A port relief and a B port relief, giving the ability to adjust the specific circuit pressure control individually within one valve body.
Features
- Valve Size: D03
- Valve Type: Modular Relief Valve
- Pressure Regulated Port: A Port & B Port
- Max Pressure: 3625 PSI
- Adjustable Pressure Range: 1015-3190 PSI
- Max Flow: 21.13 GPM
- Mounting Type: Stackable
- Adjustment Control: Knob Type with Locknut
