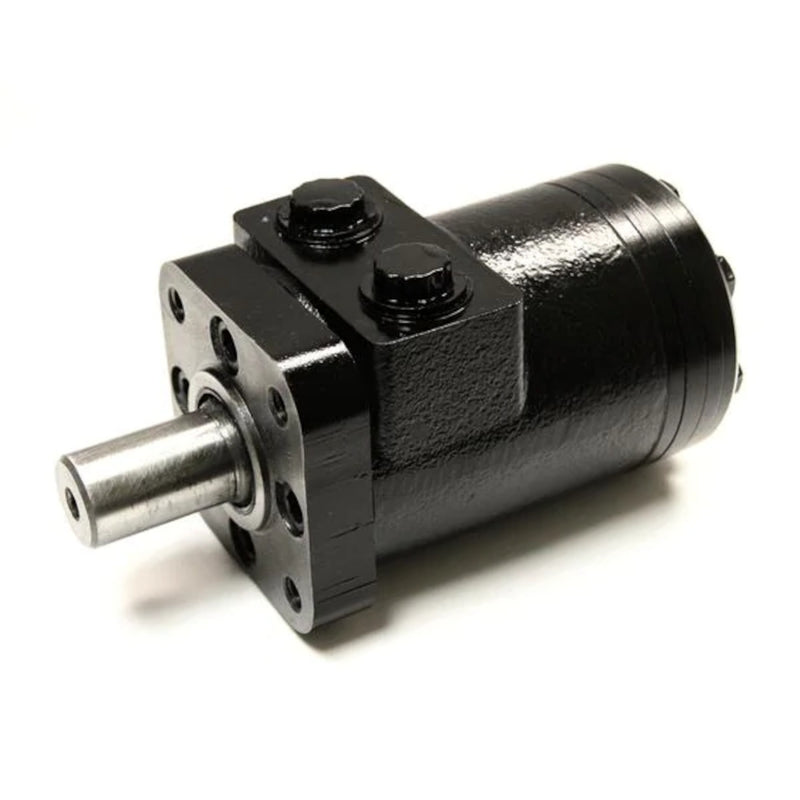

9.59 in³/rev BMPH-160-H4-K-P Hydraulic Motor
Low speed-high torque design gerotor motor. The BMPH series motor line provides a compact and highly efficient design. Can be used in parallel or series configurations.
Features
- Displacement: 9.59 in.³ / rev.
- Motor Type: Gerotor
-
Pressure:
2031 PSI cont.
2538 PSI int. -
Torque:
2673 in-lbs. cont.
3275 in-lbs. int. -
Speed:
383 RPM cont.
475 RPM int. -
Flow:
15.85 GPM cont.
19.82 GPM int. - Rotation: Reversible

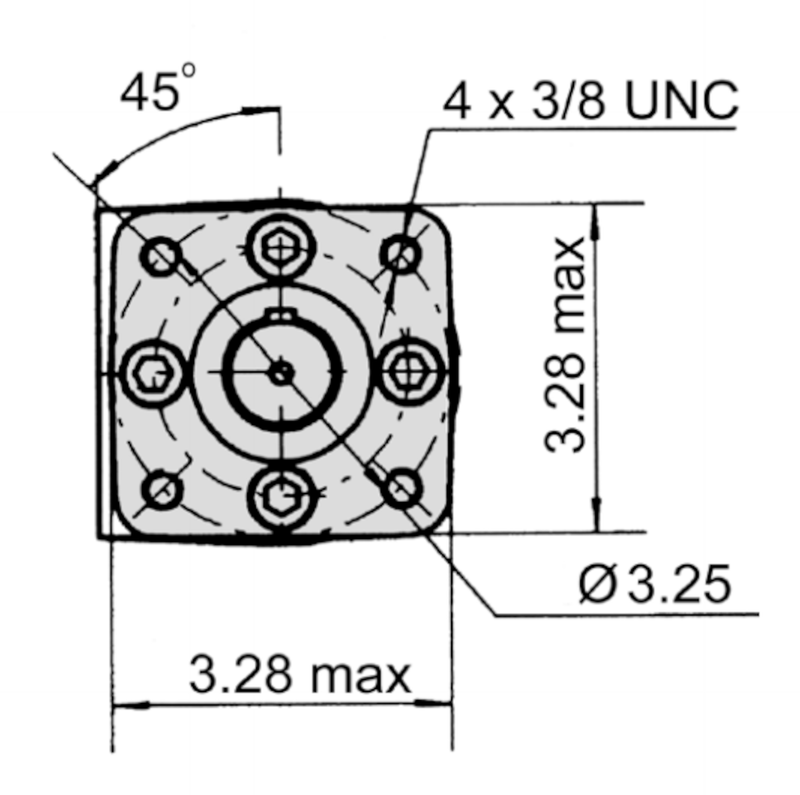

- Mount: 4 bolt Flange
- Shaft: 1" dia. w/ 1/4" woodruff key
- Ports: 1/2" NPT
- Case Drain: SAE 4
